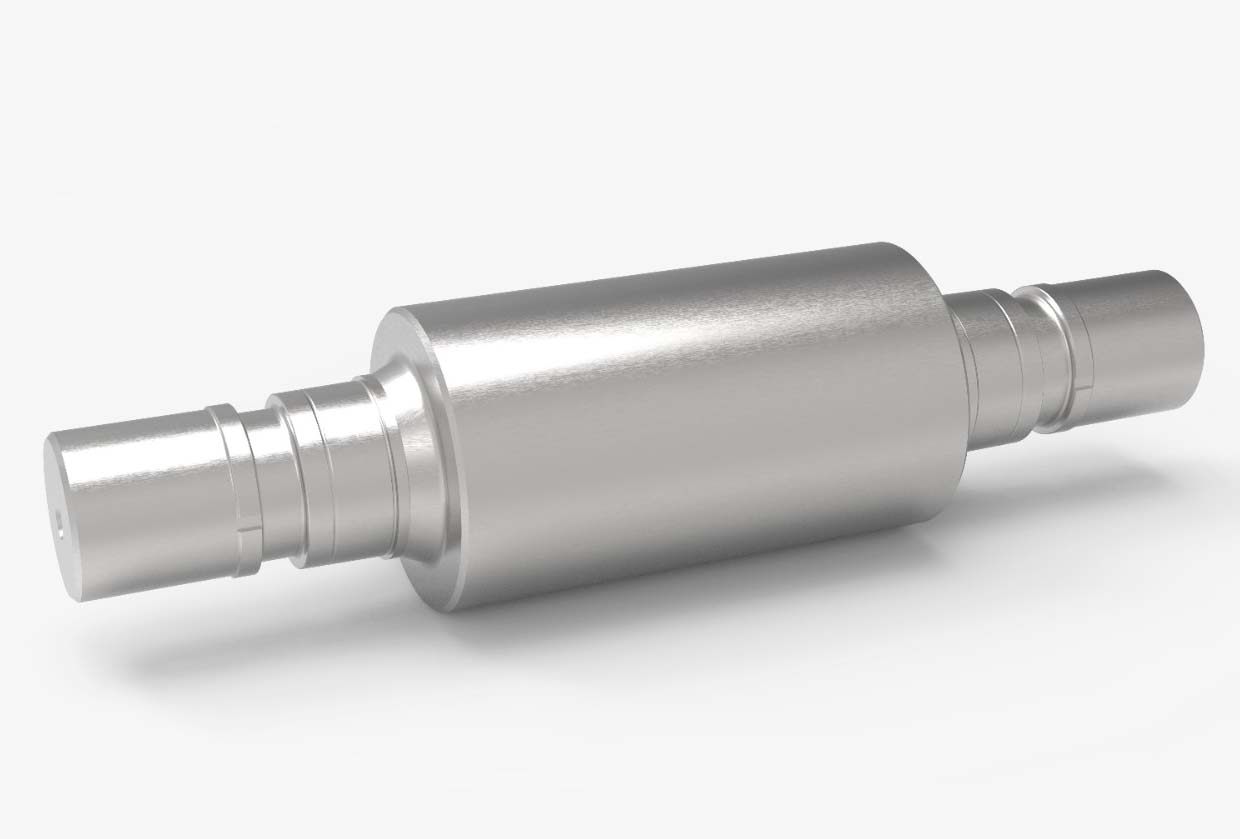

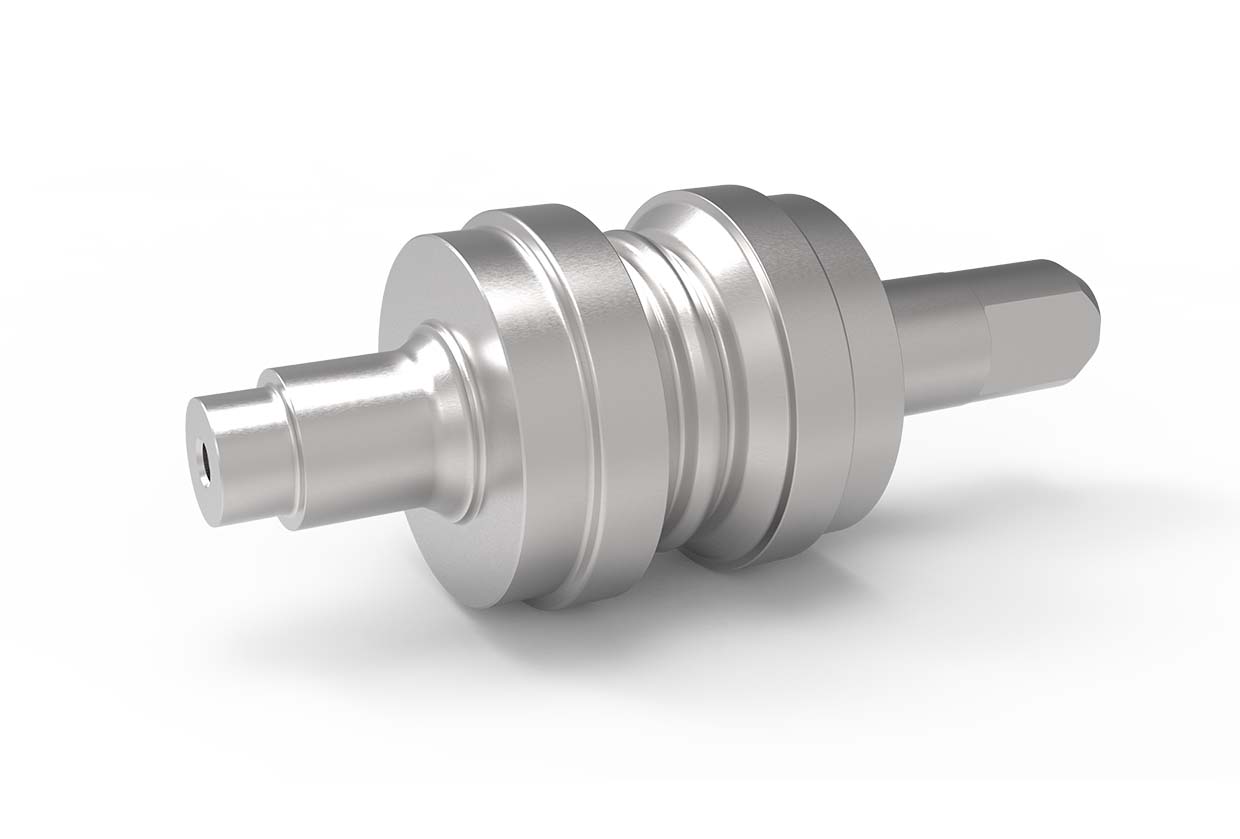

Metal Rolls For Rolling Mills
We are engaged in Manufacturing of Rolls for Rolling Mills in various grades, designed and customised so as to cater to our customer’s needs. Behari Lal Rolls has emerged as a strong performer when it comes to competence, efficiency, performance and deliverance, and has become one of the leading Rolls manufacturers in India.

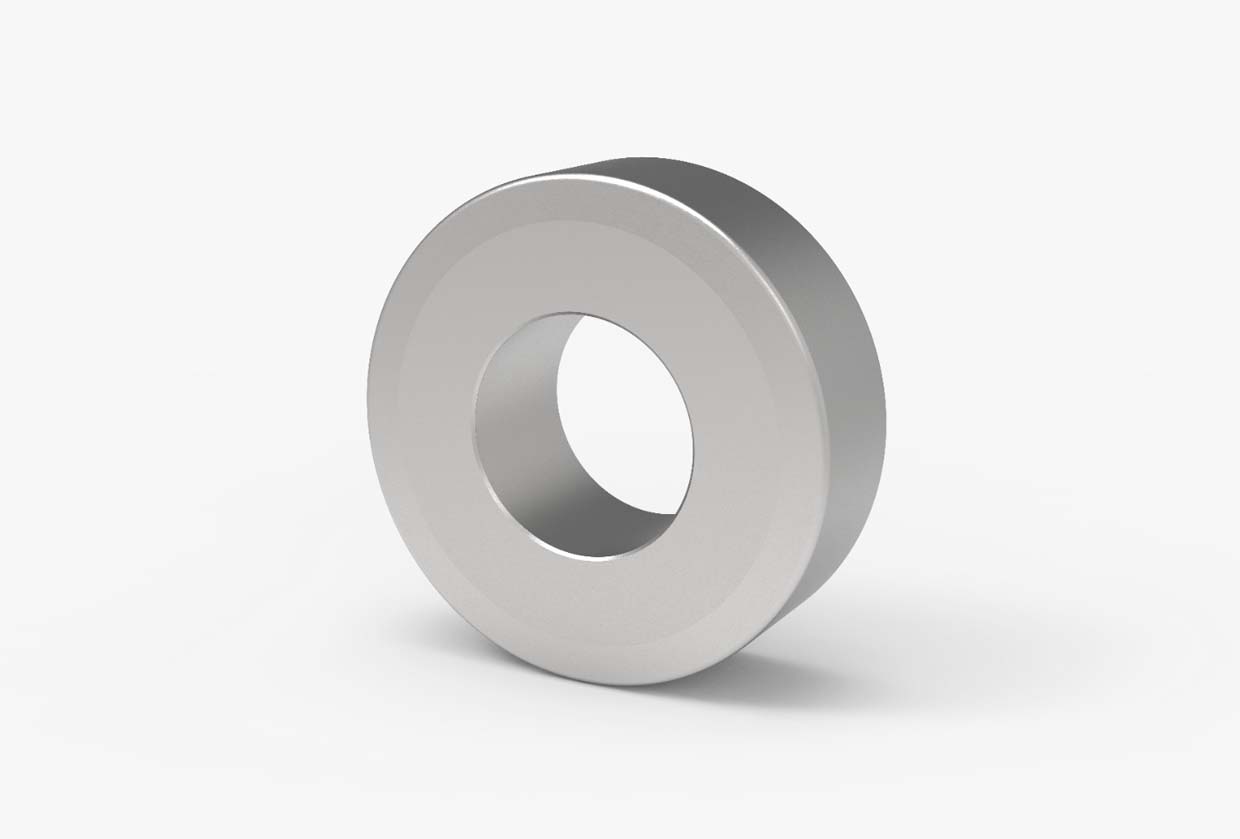

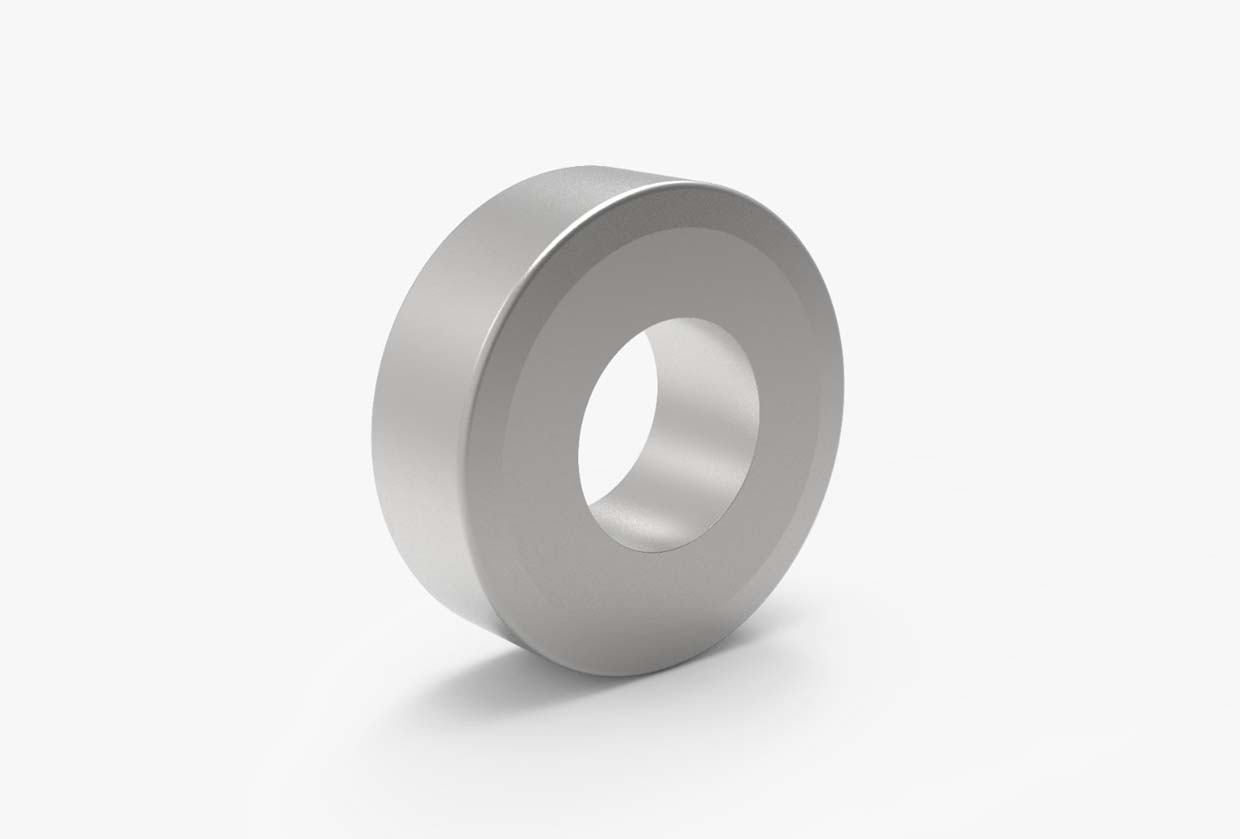

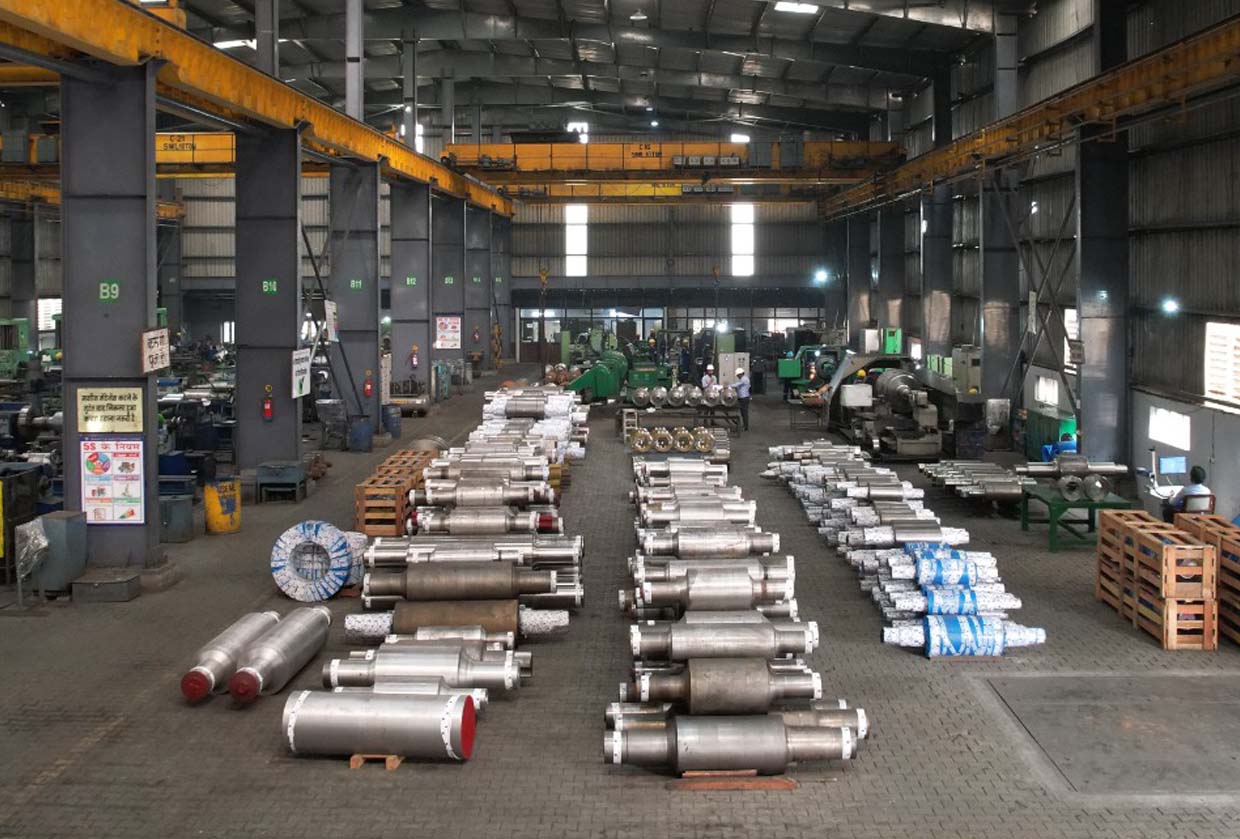

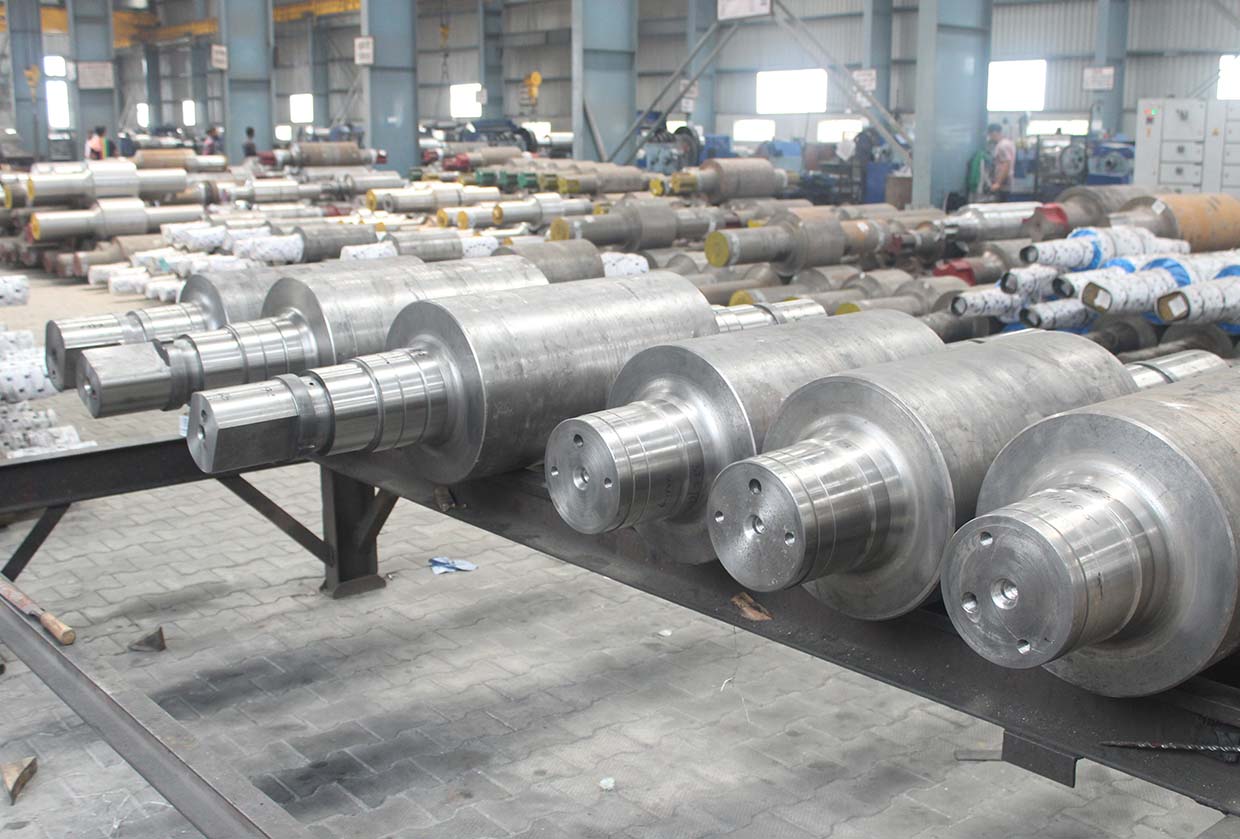

The Rolls division is headed by a team of professionals and technical experts having an extensive experience of more than 25 years in the Rolls industry and are capable of handling even the most critical jobs. Currently we are manufacturing Rolls and Rings of up to 1300mm in diameter and finish weight of 16 M.T.
ALLOY CAST STEEL ROLLS
Characteristics : Carbon content in Alloy Cast Steel Rolls is in the range of 0.50% to 0.80%. These steel rolls are alloyed with Chromium and Molybdenum. The heat treatment of these rolls involve double annealing cycles followed by quenching, tempering and hardening. This helps to improve toughness and thermal shock resistance. These rolls have high mechanical strength with good weldability.
Applications :These Rolls are suitable for Blooming Mills and Roughing Stands for Light and Heavy Section Mills.
ACS 33 (30°-35° Sh C)
ACS 37 (35°-40° Sh C)
Tensile Strength : 700-800 N/mm2
Bending Strength: 3-6 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Cr% | Mo% |
|---|---|---|---|---|---|---|
| 0.50 | 0.50 | 0.30 | 0.05 | 0.05 | 0.80 | 0.20 |
| 0.80 | 1.00 | 0.70 | MAX | MAX | 1.20 | 0.50 |
ALLOY STEEL BASE (ADAMITE) ROLLS
Characteristics :Alloy Steel Base Adamite Rolls are Steel alloyed with Nickel, Chromium and Molybdenum with higher Carbon content, ranging from 0.80% to 2.00%. Vanadium is also added to achieve the desired microstructure. It has higher mechanical strength and thermal/wear resistance. The rolls undergo a multi-stage, high temperature heat treatment cycle which consists of Normalising/Hardening followed by a tempering cycle. This gives the rolls a combination of hardness, toughness and wear resistance required for a particular application.
Applications :Applications include Heavy Section and Rail Mills, Universal Beam Mills, TMT Re-Bar and Wire Rod Mills, Medium Section Mills and Billet Mills.
ADM 37 (35°-40° Sh C)
ADM 42 (40°-45° Sh C)
ADM 47 (45°-50° Sh C)
ADM 50 (48°-52° Sh C)
Tensile Strength: 600-700 N/mm2
Bending Strength: 3-8 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 0.80 | 0.60 | 0.30 | 0.05 | 0.05 | 0.50 | 0.80 | 0.25 |
| 2.00 | 1.20 | 0.80 | MAX | MAX | 1.30 | 1.60 | 0.60 |
GRAPHITIC STEEL ROLLS
Characteristics : A special type of steel roll where some properties of cast iron are included in the steel material. The service performance of this roll is superior to a normal steel roll. These rolls are ideal for all mills like medium and heavy section where fire cracking is major concern.
Applications :These Rolls are suitable for Medium and Heavy Section Mills where fire cracking is a major concern.
GPH 50 (48° - 52° Sh C)
GPH 53 (53° - 58° Sh C)
Tensile Strength : 650-850 N/mm2
Bending Strength : 3-9 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 1.30 | 0.60 | 0.80 | 0.05 | 0.05 | 0.80 | 0.80 | 0.25 |
| 2.10 | 1.10 | 1.60 | MAX | MAX | 2.00 | 1.40 | 0.60 |
HIGH CHROME STEEL ROLLS
Characteristics : Shell contains high chromium, nickel and molybdenum & high toughness
Applications : Work rolls of Roughing stands of HSM, CSP and Steckel Mills
HCS (65° - 85° Sh C)
HIGH SPEED IRON ROLLS
Characteristics : High Wear Resistance
Applications : Work rolls of early finishing stands of HSM and CSP Mills
HCI (75° - 85° Sh C)
SPHEROIDAL GRAPHITE IRON (FERRITIC) ROLLS
Characteristics :Spheroidal Graphite Iron Ferritic Rolls are structurally characterised as having graphite in nodular form. The matrix structure varies from Ferritic to Ferrito-Pearlitic along with low carbide content and graphite in the form of spheroid / nodules.
Applications :These rolls are suitable for Stands of Wire Rod and Bar Mills'
SG F 43 (40° - 45° Sh C)
SG F 47 (45° - 50° Sh C)
Tensile Strength : 400-600 N/mm2
Bending Strength : 2-4 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 2.80 | 0.60 | 1.50 | 0.08 | 0.015 | 1.50 | 0.10 | 0.25 |
| 3.40 | MAX | 2.30 | MAX | MAX | 2.30 | 0.60 | 0.60 |
SPHEROIDAL GRAPHITE IRON (PEARLITIC) ROLLS
Characteristics :Spheroidal Graphite Iron Pearlitic Rolls are structurally characterised as having graphite in nodular form instead of being in flakes as characterised in normal Cast Iron Rolls. The matrix structure varies from Ferrito-Pearlitic and Pearlitic together with different carbide content and graphite in the form of spheroid / nodules.
Applications :These Rolls are suitable for Roughing and Intermediate Mill Stands of Blooming/Slabbing, TMT Re-Bar and Wire Rod mills, and Rolls for Intermediate and Finishing Stands of Structure and Merchant Mills.
SG P 47 (45° - 50° Sh C)
SG P 53 (50° - 55° Sh C)
SG P 57 (55° - 60° Sh C)
SG P 63 (60° - 65° Sh C)
Tensile Strength : 400-600 N/mm2
Bending Strength : 2-4 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 3.00 | 0.45 | 1.20 | 0.08 | 0.015 | 1.50 | 0.30 | 0.25 |
| 3.60 | 1.10 | 2.30 | MAX | MAX | 2.30 | 0.90 | 0.50 |
SPHEROIDAL GRAPHITE IRON (BAINITIC-ACICULAR) ROLLS
Characteristics : Stronger rolls with more wear resistant than S.G.I. Pearlitic Rolls Alloyed with a higher % of Nickel and Molybdenum than S.G.I Pearlitic'.
Applications :These Rolls are suitable for Intermediate and Finishing Mill Stands for TMT Re-Bar and Wire Rod Mills, Rail and Structural Mills.
SG AC 63 (60° - 65° Sh C)
SG AC 67 (65° - 70° Sh C)
SG AC 73 (70° - 75° Sh C)
Tensile Strength : 500-600 N/mm2
Bending Strength : 3-5 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 3.20 | 0.45 | 1.20 | 0.06 | 0.015 | 2.30 | 0.40 | 0.40 |
| 3.70 | 1.00 | 1.60 | MAX | MAX | 3.50 | 0.90 | 1.00 |
ALLOYED INDEFINITE CHILL ROLLS (AIC)
Characteristics :Alloyed Indefinite Chill Rolls (AIC) have a matrix structure which varies from fine pearlitic to bainitic martensitic depending on the alloy addition. The desired hardness is achieved by changing the carbide to graphite balance with the help of the chemical composition. Also, due to alloy addition, these rolls have a much better hardness penetration than clear chill and other cast iron rolls. Alloyed Indefinite Chill Rolls (AIC) are highly suitable for products where surface finish is very critical. Wide range of hardness/composition for a variety of applications is available to suit a particular mill stand.
Applications :These Rolls are suitable for Intermediate/Finishing Stands of TMT Re-Bar and Wire Rod Mills, Merchant Mills and Structural Mills. Finishing Stands of Strip and Flat Rolling Mills.
AIC 57 (55° - 60° Sh C)
AIC 63 (60° - 65° Sh C)
AIC 67 (65° - 70° Sh C)
AIC 73 (70° - 75° Sh C)
SPIC (70° - 80° Sh C)
Tensile Strength : 200-300 N/mm2
Bending Strength: 1-1.8 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 3.10 | 0.50 | 0.60 | 0.10 | 0.05 | 1.50 | 0.60 | 0.25 |
| 3.60 | 1.10 | 1.70 | MAX | MIN | 3.00 | 1.50 | 0.80 |
ICDP ROLLS
Characteristics : Good surface of Rolled Product and Good wear resistance.
Applications :These Rolls are suitable for Finishing Stands of Hot Strip Mill as Work Rolls and CSP Mills, Work Rolls of Finishing Stands of Steckel Mills, and Work Rolls of Plate Mill.
ICDP 73 (70° - 75° Sh C)
ICDP 78 (75° - 80° Sh C)
ICDP 83 (80° - 85° Sh C)
Tensile Strength : 400-450 N/mm2
Bending Strength: 1-2 J/cm2
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Ni% | Cr% | Mo% |
|---|---|---|---|---|---|---|---|
| 3.00 | 0.60 | 0.80 | 0.10 | 0.05 | 3.50 | 1.00 | 0.40 |
| 3.50 | 1.20 | 1.20 | MAX | MIN | 4.00 | 1.50 | 0.65 |
